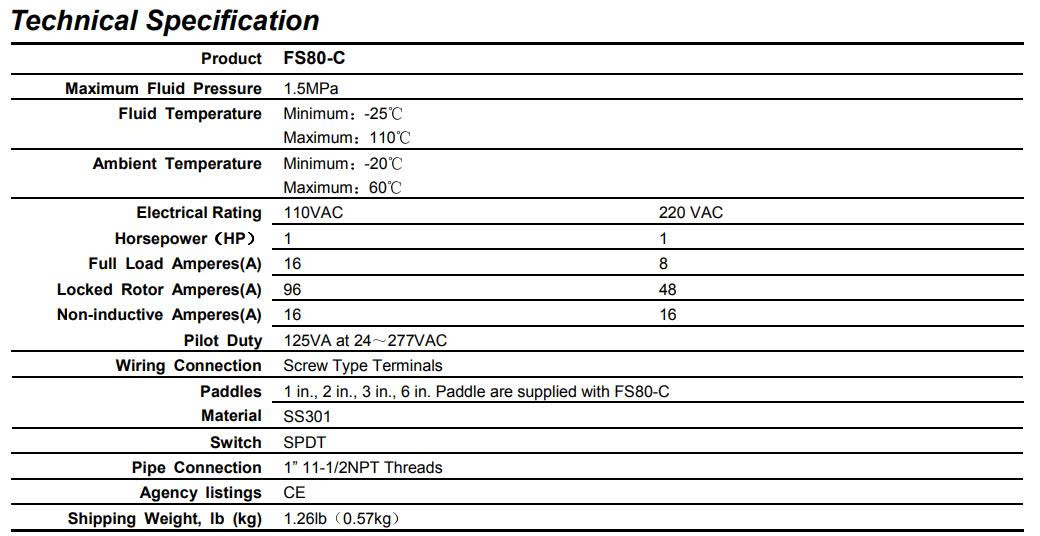

Công tắc dòng chảy Johnson Controls FS80-C Flow Switch
Application 1) FS80-C Flow Switch responds to fluid flow in lines carrying water, ethylene glycol, or other non-hazardous fluids. 2) FS80-C Flow Switch use a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1-inch trade size. 3) Single-Pole, Double-Throw (SPDT) flow switch that can be wired to energize one device and de-energize another device powered from the same source when liquid flow either exceeds or drop below the set flow rates. 4) FS80-C use with fluid pressures up to 1.5MPa.
Features
FS80-C Flow Switch responds to fluid flow in lines carrying water, ethylene glycol, or other Non-hazardous fluids
FS80-C Flow Switch uses a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1-inch trade size
Single-Pole, Double-Throw (SPDT) flow switch that can be wired to energize one device and de-energize another device powered from the same source when liquid flow either exceeds or drop below the set flow rates
Sản phẩm liên quan
Cảm biến áp suất ống gió PR-276
Bộ điều khiển DDC EasyIO Neo Series EC-1208 Edge Controller
Bộ điều khiển DDC EasyIO Neo Series EC-1616 Edge Controller
Bộ điều khiển DDC EasyIO Neo Series CW-0404 Edge Controller
Bộ Module Johnson Controls CM-485
Bộ mở rộng Johnson Controls SM-16DI Input Signal Module
Bộ mở rộng Johnson Controls SM-16UI Input Signal Module
Bộ mở rộng Johnson Controls SM-8AO Output Signal Module
Cảm biến áp suất đường nước Johnson Controls LPT7000C2SA10
Cảm biến nhiệt độ gắn ống gió Johnson Controls HT7000D5P0 Duct Temp Pt-1000
Cảm biến nhiệt độ gắn ống nước Johnson Controls HT7000I5P1 Well Temp Pt-1000, 65 mm
Cảm biến nhiệt độ gắn ống nước Johnson Controls HT7000I5P2 Well Temp Pt-1000, 102 mm
Cảm biến nhiệt độ gắn ống nước Johnson Controls HT7000I5P3 Well Temp Pt-1000, 152 mm
Cảm biến nhiệt độ gắn ống nước Johnson Controls HT7000I5P4 Well Temp Pt-1000, 300 mm

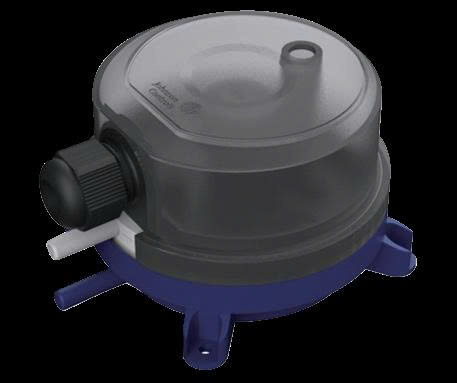

Công tắc chênh áp suất gió Johnson Controls P133 series
